High current distribution terminal blocks for
electrical panels
Type 9D.01.5.080.0304
– 80 A
Type 9D.01.5.125.0206
– 125 A
Type 9D.01.5.175 .0210
– 175 A
3 configurations available in a single
product:
– Single, pole splitter: Split of main power input
into 4, 6, 10 or 11 outputs
– Multiple, pole splitters: Splitting with
increased number of outputs
– Grouping: Combining several inputs to make
a single output (eg. solar applications)
• Reversible snap-on cover
• For use with Cu + AL cables
• Ratings, approvals and screw torque settings
marked on cover
• Plastic material conforming to UL94 V0
• Ready to use Marking Kit (L1, L2, L3, N, PE, +, –)
supplied with every block
• Adjacent units may be mechanically
interlocked, if required
• 35 mm din rail (EN60715) mouting
PRODUCT CODE
9D.01.5.125.0206
DIMENSIONS
28.2x75x45 mm
MAXIMUM CURRENT
125A
MAXIMUM VOLTAGE AC
1000V AC
MAXIMUM VOLTAGE DC
1500V DC
NUMBER OF OUTPUTS
7
SHORT CIRCUIT CURRENT
100 kA
TECHNICAL DESCRIPTION
High Current Terminal Blocks, 125 A, Number of inputs: 2 inputs (1+1), Number of output: 6 output, Supply version: current, ambient temperature from -20 to +70 °C

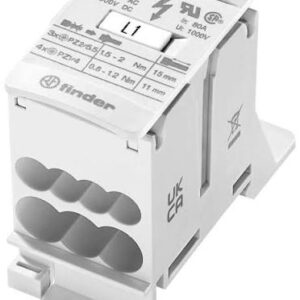

9D.01.5.125.0206 – HIGH CURRENT DISTRBUTION TERMINAL BLOCK 125A
Description
High current distribution terminal blocks for
electrical panels
Type 9D.01.5.080.0304
– 80 A
Type 9D.01.5.125.0206
– 125 A
Type 9D.01.5.175 .0210
– 175 A
3 configurations available in a single
product:
– Single, pole splitter: Split of main power input
into 4, 6, 10 or 11 outputs
– Multiple, pole splitters: Splitting with
increased number of outputs
– Grouping: Combining several inputs to make
a single output (eg. solar applications)
• Reversible snap-on cover
• For use with Cu + AL cables
• Ratings, approvals and screw torque settings
marked on cover
• Plastic material conforming to UL94 V0
• Ready to use Marking Kit (L1, L2, L3, N, PE, +, –)
supplied with every block
• Adjacent units may be mechanically
interlocked, if required
• 35 mm din rail (EN60715) mouting
S9D DATASHEET
DownloadPRODUCT RANGE TECHNICAL SPECIFICATIONS
9D SERIES REPORT
DownloadPRODUCT RANGE SALES REPAORT
