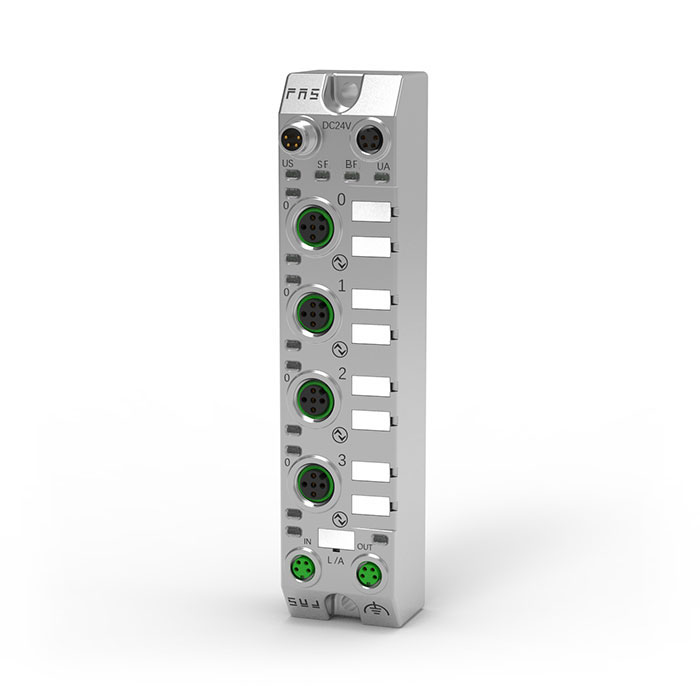

FAS-Elec EtherCAT protocol, 4 port, IO-Link master station, Class B

FAS-Elec EtherCAT protocol, 4 port, IO-Link master station, Class B

IO-Link master station

Get A Quote
SKU: IOL-MASTERB-EC-M12-4 Categories: , Brand:

Description

Can connect to 4 IO-Link protocol devices
Integrated EtherCAT fieldbus interface
Protection rating: IP67 (when properly connected)
Wide operating temperature range: -25…+70°C
Shell material: nickel-plated Gd-Zn alloy

PRODUCT CODE
IOL-MASTERB-EC-M12-4
Industrial EthernetEtherCAT
Type4×IO-Link, 4 DI
IIoT-
Rated operating voltage18...30 V DC
Current consumption of the module≤ 150 mA（24VDC）
Module status indicator lightYes
Network status indicator lightYes
Port status indicator lightRed, yellow
Connection: fieldbusM8, 4Pin, female connector
Connection:Power supplyM8, 4Pin, male/female connector
Connection: I/O portM12, A-coded, female
Number of I/O ports4
Enter the quantityUp to 4 PNP inputs
Output quantity-
Input/output is configurableNo
Maximum load current, sensor/channel1A
Maximum output load current-
Port Diagnostic Indicator Light (Overload)Red LED indicator light
Total current UA≤ 4A
Total current US≤ 4A
Protection level complies with IEC 60529IP67 (when properly connected)
Certification/compliance with standardscULus
Operating temperature-25...+70℃
Storage temperature-40...+85℃
Installation method2 mounting holes
Dimensions (Length × Width × Height)145×32×33 mm
Shell materialNickel-plated Gd-Zn alloy
IO-Link data-
IO-Link Master4×IO-Link
IO-Link version1.1
Port levelClass B
IO-Link main port0...3 ports can connect input/output slaves
Operating modes (3 wires)SIO、COM 1、COM 2、COM 3
Indicator light communicationGreen LED indicator
Indicator light errorRed LED indicator light
Maximum load current for IO-Link devices2A
