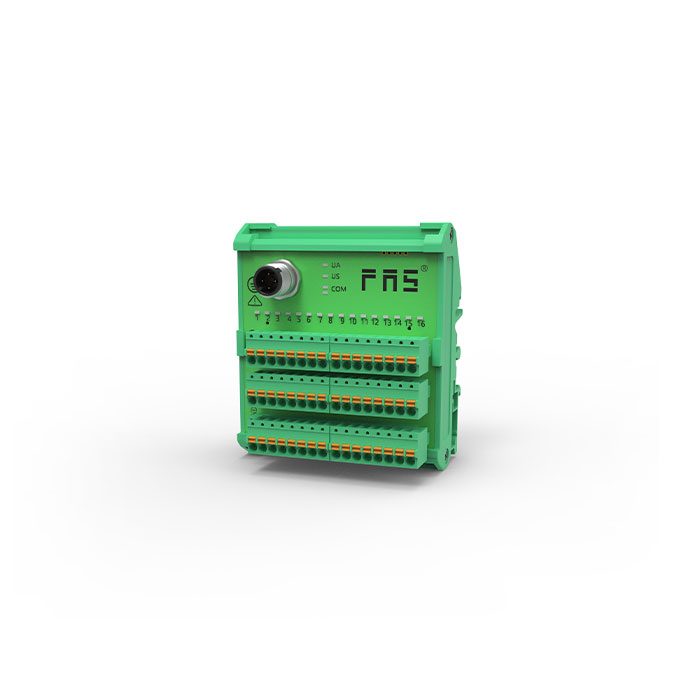

FAS-Elec IP20, IO-Link slave, PNP, configurable 16DI/DO, terminal module

FAS-Elec IP20, IO-Link slave, PNP, configurable 16DI/DO, terminal module

Get A Quote
SKU: IOL-HUB-IP20-16DIO Categories: ,

Description

IO-Link devices
Spring plate terminal interface
Input/output is configurable
Suitable for inside cabinets
Protection rating IP20

PRODUCT CODE
IOL-HUB-IP20-16DIO
IO-LinkEquipment
Type16×DI/DO
Rated operating voltage18...30 V DC
IO-Link RUN function indicator lightGreen LED indicator
Power start indicator lightGreen LED indicator
Connection: IO-Link portM12, A-coded, male
Connect US Spring plate terminals, insert type
Connect UA Spring plate terminals, insert type
Connect the I/O portSpring plate terminals, insert type
Number of I/O ports16
Enter the quantityUp to 16 PNP inputs
Output quantityUp to 16 PNP outputs
Input/output is configurableYes
Maximum load current, sensor/channel0.35A
Maximum load current, actuator/channel0.5 A
Port status indicator lightYellow LED indicator
Total current UA< 2A
Total current US< 1.2A
Protection level complies with IEC 60529IP 20
Certification/compliance with standardsCE
Operating temperature-25...+70 ℃
Storage temperature-40...+85 °C
Installation methodRail installation
Dimensions (Length × Width × Height)75.4×86.4×47.8 mm
lO-Link-
lO-Link ports1× Equipment
Maximum cycle period3 ms
IO-Link handles data length2 input bytes / 2 output bytes
Indicator light communicationGreen LED, pulse
Indicator light errorRed LED indicator
