Name: FAS-Elec M8 interface, IO-Link slave station, 16DI, PNP | Carrel Electrade
SKU: IOL-HUB-M8-16DI
Availability: InStock

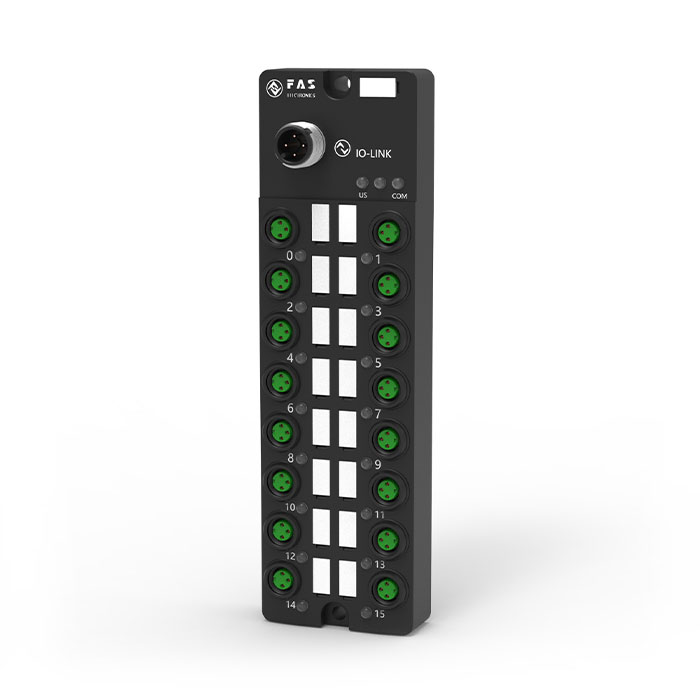

FAS-Elec M8 interface, IO-Link slave station, 16DI, PNP

IO-Link slave

Description

IO-Link protocol device
16 ports, 16 signals
Protection rating: IP67 (when properly connected)

PRODUCT CODE

IOL-HUB-M8-16DI

IO-Link	Substation equipment
Type	16×DI
Rated operating voltage	18...30 V DC
Power start indicator light	Green LED indicator
Connection: IO-Link port	M12, A-coded, male
Connection: I/O port	M8, 3 pins, female head
Number of I/O ports	16
Input or output quantity	Up to 16 PNP inputs
Can it be configured for this purpose?	Normally closed + always open
Input status indicator light	Yellow LED indicator light
Total current U A	-
Total current U S	Maximum 800 mA
Protection level complies with IEC 60529	IP 67 (when connected correctly)
Certification/compliance with standards	CE
Operating temperature	-25...+70 ℃
Storage temperature	-40...+85 °C
Weight	About 150 g
Installation method	2 mounting holes
Dimensions (Length × Width × Height)	154×45.5×24.2 mm
Shell material	Modified plastics
1O-Link ports	1× Equipment
Working mode	COM 2
IO-Link handles data length	2 input bytes
Indicator light communication	Green LED, pulse
Indicator light error	Red LED indicator

IO-Link Device Description File
