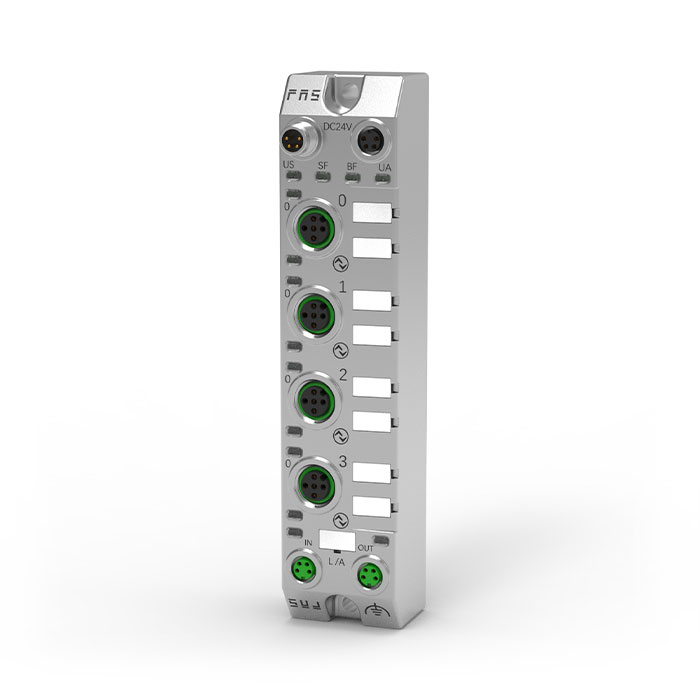

FAS-Elec Multi-protocol master stations, 4-port systems, IO-Link master stations, Class A

FAS-Elec Multi-protocol master stations, 4-port systems, IO-Link master stations, Class A

IO-Link master

Get A Quote
SKU: IOL-MASTERA-MP-M12-4 Categories: , Brand:

Description

Can connect to 4 IO-Link protocol devices
Integrates PROFINET, Ethernet/IP, CC-Link IEF Basic, Modbus TCP fieldbus interface
Protection rating: IP67 (when properly connected)
Wide operating temperature range: -25…+70°C
Shell material: nickel-plated Gd-Zn alloy

PRODUCT CODE
IOL-MASTERA-MP-M12-4
Industrial EthernetPROFINET、Ethernet/IP、CC-Link IEF Basic 、Modbus TCP
Type4×IO-Link, 8 DI/4 DO
IIoT-
Rated operating voltage18...30V DC
Current consumption of the module≤ 150 mA（24VDC）
Ring network redundancy functionMRP
Module status indicator lightYes
Network status indicator lightYes
Port status indicator lightRed, yellow
Connection: fieldbusM8, 4Pin, female connector
Connection:Power supplyM8, 4Pin, male/female connector
Connection: I/O portM12, A-coded, female
Number of I/O ports4
Enter the quantityUp to 8 PNP inputs
Output quantityUp to 4 PNP outputs
Input/output is configurableYes
Maximum load current, sensor/channel1A
Maximum output load current2A
Port Diagnostic Indicator Light (Overload)Red LED indicator light
Total current UA≤ 4A
Total current US≤ 4A
Protection level complies with IEC 60529IP67 (when properly connected)
Certification/compliance with standards-
Operating temperature-25...+70℃
Storage temperature-40...+85℃
Installation method2 mounting holes
Dimensions (Length × Width × Height)145×32×33 mm
Shell materialNickel-plated Gd-Zn alloy
IO-Link data-
IO-Link Master4×IO-Link
IO-Link version1.1
Port levelClass A
IO-Link main port0...3 ports can connect input/output slaves
Operating modes (3 wires)SIO、COM 1、COM 2、COM 3
Indicator light communicationGreen LED indicator
Indicator light errorRed LED indicator light
Maximum load current for IO-Link devices2A

Configuration File

Download

EtherNET/IP Configuration File - EDS

Configuration File

Download

PROFINET Configuration File - GSD

Configuration File

Download

CC-Link Configuration File - CSP
