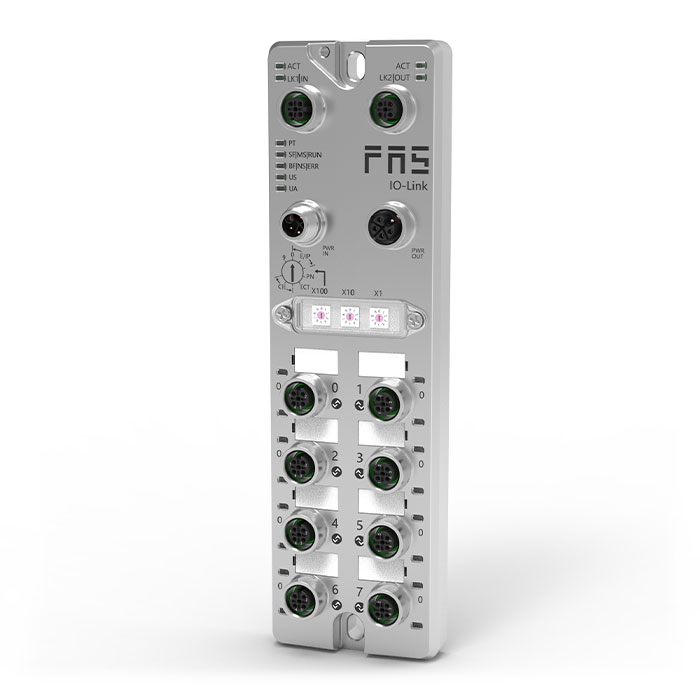

FAS-Elec Multi-protocol master stations, 8-port terminals, IO-Link master stations, Class A

FAS-Elec Multi-protocol master stations, 8-port terminals, IO-Link master stations, Class A

IO-Link master

Get A Quote
SKU: IOL-MASTERA-MP-M12-8 Categories: , Brand:

Description

Can connect to 8 IO-Link protocol devices
Integrates PROFINET, Ethernet/IP, CC-Link IEF Basic, Modbus TCP fieldbus interfaces
Protection rating: IP67 (when properly connected)
Wide operating temperature range: -25…+70°C
Shell material: nickel-plated Gd-Zn alloy

PRODUCT CODE
IOL-MASTERA-MP-M12-8
Industrial EthernetPROFINET、Ethernet/IP、CC-Link IEF Basic、Modbus TCP
Type8×IO-Link, 16 DI/DO
IIoT-
Rated operating voltage18...30V DC
Current consumption of the module≤ 150 mA（24VDC）
Ring network redundancy functionMRP
Module status indicator lightYes
Network status indicator lightYes
Port status indicator lightRed, yellow
Connection: fieldbusM12, D-coded, female
Connection:Power supplyM12, L-coded, male/female
Connection: I/O portM12, A-coded, female
Number of I/O ports8
Enter the quantityUp to 16 PNP inputs
Output quantityUp to 16 PNP outputs
Input/output is configurableYes
Maximum load current, sensor/channel1A
Maximum output load current2A
Port Diagnostic Indicator Light (Overload)Red LED indicator light
Total current UA≤ 16A
Total current US≤ 16A
Protection level complies with IEC 60529IP67 (when properly connected)
Certification/compliance with standardsCE, cULus
Operating temperature-25...+70℃
Storage temperature-40...+85℃
Installation method2 mounting holes
Dimensions (Length × Width × Height)222.4×65×25.8 mm
Shell materialNickel-plated Gd-Zn alloy
IO-Link data-
IO-Link Master8×IO-Link
IO-Link version1.1
Port levelClass A
IO-Link main portPort 0...7 can connect input/output slaves
Operating modes (3 wires)SIO、COM 1、COM 2、COM 3
Indicator light communicationGreen LED indicator
Indicator light errorRed LED indicator light
Maximum load current for IO-Link devices2A
