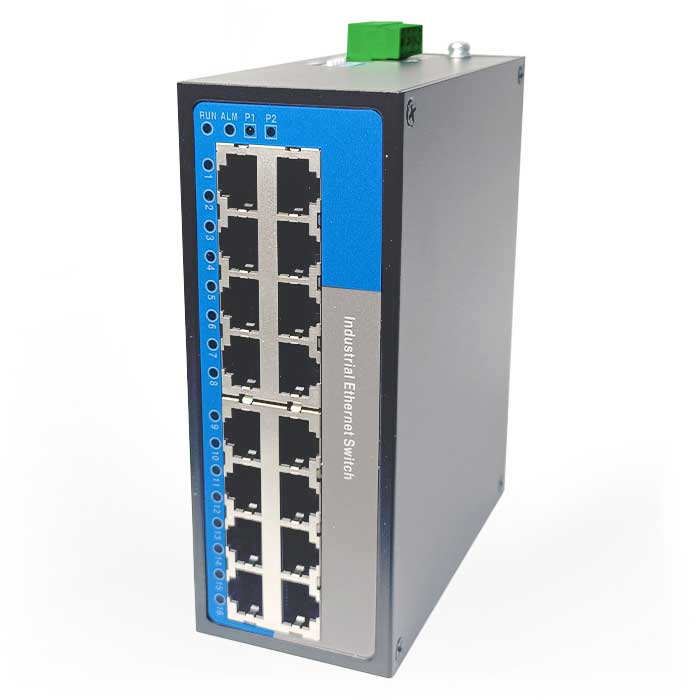

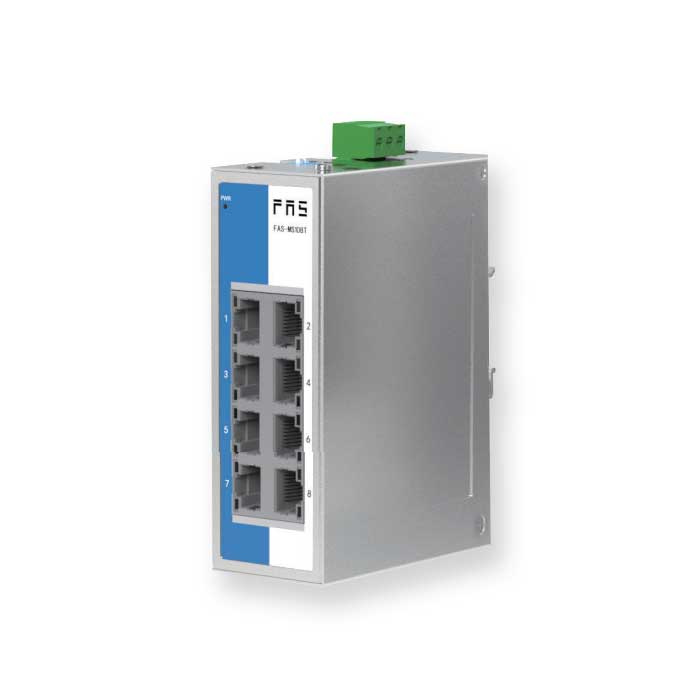

5-port, 8-port, or 16-port industrial unmanaged Ethernet switches;
The MS105T/108T/116T series switches offer 12/24/48 VDC and 18~30 VAC redundant power inputs, allowing simultaneous connection to either DC or AC power sources;
Supports IEEE802.3/802.3u/802.3x, 10/100M/1000M, full/half-duplex, and MDI/MDI-X adaptability;
This product series is specifically designed for harsh industrial environments.
PRODUCT CODE
Ethernet Ports
5, 8, 16
Supports
IEEE 802.3/802.3x/802.3u
Input voltage
12~48VDC
Installation
35mm Din Rail Installation
MAC address
4K
Speeds
Auto-negotiation 10/100/1000 Mbps, half/full duplex, Auto MDI/MDIX
FAS-Elec Non-managed Ethernet Switch
Non-managed Ethernet Switch
Description
