FAS-Elec D-Sub Interface Remote IO Modules
FAS-Elec D-Sub Interface Remote IO Modules - Image 2

FAS-Elec D-Sub Interface Remote IO Modules

D-Sub Interface Remote IO Modules

Get A Quote
SKU: N/A Category: Brand:

Description

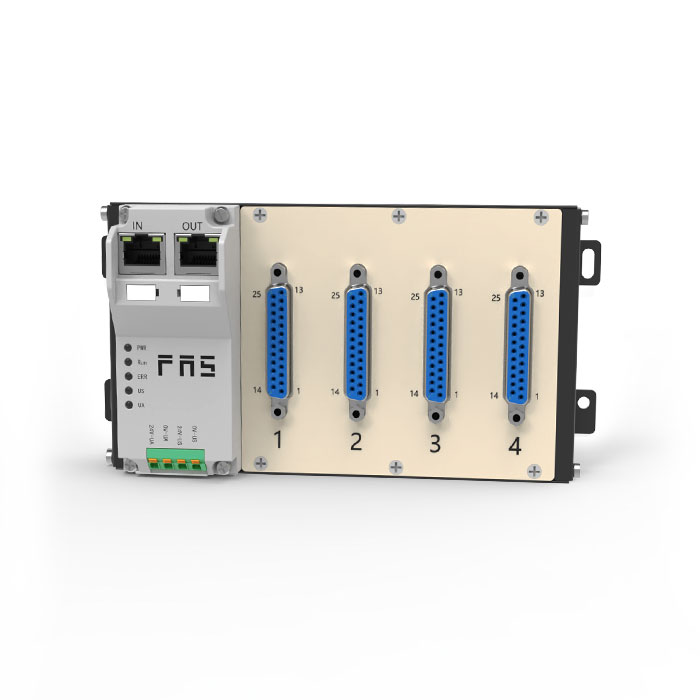

64 DI/DO Remote I/O Module — D-Sub, IP20

Expand your fieldbus network with fast, flexible remote I/O. This module offers 64 adaptive digital inputs/outputs across four D-Sub 25-pin connectors, with PNP signal compatibility and auto-adaptive input/output configuration on every channel — built into a compact, cabinet-ready IP20 housing.

Protocols

    • EtherCAT
    • Multi-Protocol (PROFINET / EtherNet/IP / CC-Link IEF Basic / Modbus TCP)

Key features (all variants)

  • 64x adaptive digital I/O (4 × 16 channels), PNP
  • 4 × D-Sub 25-pin connectors for fast, secure wiring
  • RJ45 network connection, terminal-block power (18–30 V DC)
  • IP20 protection rating — ideal for cabinet installation
  • Robust aluminum alloy housing with electrophoretic coating
  • Operating range: -25°C to +70°C
  • DIN rail or 4-hole panel mounting
  • CE certified
PRODUCT CODE
ProtocolEtherCAT, Multi-Protocol
IO64xDI/DO PNP, adaptive
Rated operating voltage18...30 V DC
Current consumption of the module≤ 150 mA（24VDC）
Module status indicator lightYes
Network status indicator lightYes
Connection: fieldbusRJ45 network port
Connection: Power supplyTerminal type
Connection: I/O port4 x DB25
Number of I/O ports4 x 16
InputsUp to 64 PNP Input
OutputsUp to 64 PNP outputs
Input/output is configurableAdaptive
Maximum load current, sensor/channel1A
Maximum output load current0.5 A
Total current UA≤4A
Total current US≤4A
Protection level complies with IEC 60529IP 20 (when properly connected)
Certification/compliance with standardsCE
Operating temperature-25...+70 °C
Storage temperature-40...+85 °C
Installation method4 mounting holes/rail installation
Dimensions (Length × Width × Height)183.5 x 92 x 50.1
Shell materialAluminum alloy electrophoresis
