Suitable for applications where a variable light level is required – programmable via smartphone with NFC communications. Compatible with power supply/ballasts with 0-10V or PWM inputs.
PRODUCT CODE
12.A4-230-AC
ANALOG OUT
0-10V/PWM OUTPUT
12.A4-230-AC
Features include:
1 analog output: 0-10V or PWM
Functions: “Astro” ON, “Astro” OFF, ON/OFF
Location coordinates easily settable for most European countries through Post codes
Offest function: allows programming of switching times offset from the astronomic time (by up to 90 min, in 1 min step)
Minimum time interval setting – 1 minute
Summer/Winter European, Australian, Brazilian time
LCD status indication, set-up and programming
Lock with a 4-digit PIN
Back-light display
Internal battery for set-up and programming without supply, easily replaceable from the front
Protective separation between supply and contacts
35 mm wide
35 mm rail (EN 60715) mount
Cadmium free contact material
12.A4-230-AC TIMESWITCH
Description
Suitable for applications where a variable light level is required – programmable via smartphone with NFC communications. Compatible with power supply/ballasts with 0-10V or PWM inputs.
1 analog output: 0-10V or PWM
Functions: “Astro” ON, “Astro” OFF, ON/OFF
Location coordinates easily settable for most European countries through Post codes
Offest function: allows programming of switching times offset from the astronomic time (by up to 90 min, in 1 min step)
Minimum time interval setting – 1 minute
Summer/Winter European, Australian, Brazilian time
LCD status indication, set-up and programming
Lock with a 4-digit PIN
Back-light display
Internal battery for set-up and programming without supply, easily replaceable from the front
Protective separation between supply and contacts
35 mm wide
35 mm rail (EN 60715) mount
Cadmium free contact material
12.A4 DATASHEET
Download12 SERIES DATASHEET
Related Products
Crouzet MCR1 Timer – Delay-Off (C), 0.1s/100h, 1CO 10A, 24-240AC/24VDC
Get A QuoteComadan CMAC DC Power Supply Module for Plug-In Relays

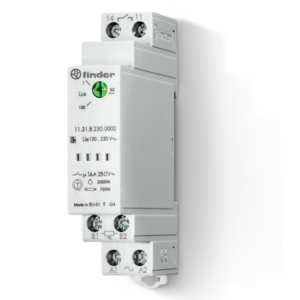

Get Quote This product has multiple variants. The options may be chosen on the product pageFinder Type 11.31 DAYLIGHT SWITCH, SURFACE MTG HEAD, ADJUSTABLE 1-100 LUX,1NO16A@250VAC
