The relay module provides 4, 8, 16, 20, or 32 relays, either mechanical Finder 46.61-024-DC relays or Autonics SRS1 solid state relays. These relay modules can be populated with a mixture of mechanical relays or solid state relays to suit the loads being switched.
Relay control can be made via terminals or through a ribbon cable connected to a PLC.
There are terminals for an external 24V DC supply which powers the PLC interface when driving the relays from a PLC via the ribbon cable.

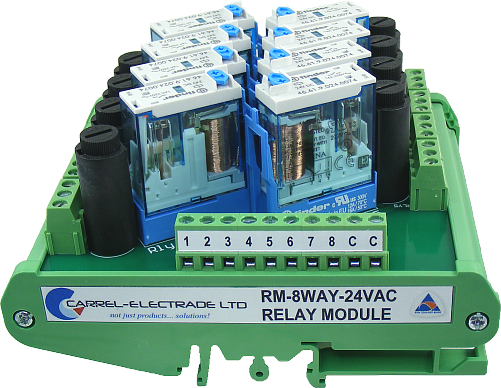

RM-8WAY-24VAC: Relay control is via terminals using an external 24V AC or DC supply.
DIN rail mounting
4, 8, 16, 20 & 32 way relay modules
Plug in relays
Finder 46.61 250VAC 10A CO mechanical relays
Note. 10A fuse/fuse holder limited
or Autonics SRS1 series solid state relays
Fused output
Relay control via terminals or ribbon cable to PLC
RM-32WAY-24VDC ribbon cable only
RM-8WAY-24VAC terminals only

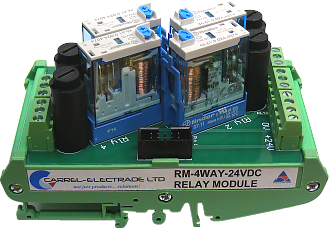

RM-4WAY-MB-24VDC:
4 individual relays with fuse holders
RM-8WAY-24VDC:
8 relays with fuse holders
RM-16WAY-24VDC:
16 relays with fuse holders

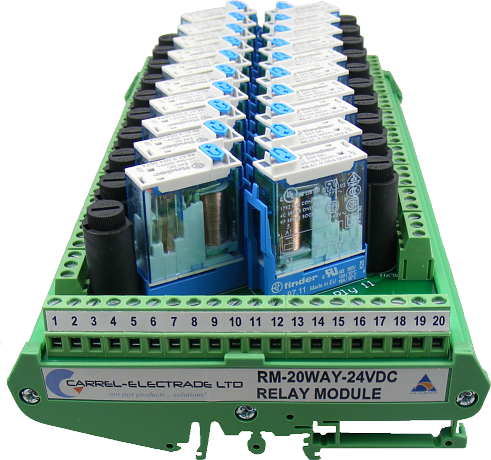

RM-20WAY-24VDC:
20 relays with fuse holders

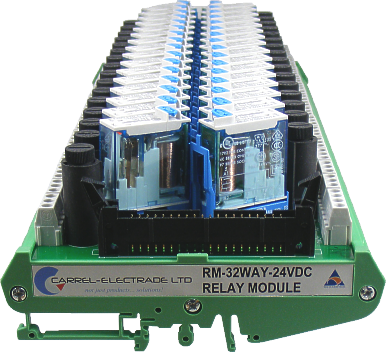

RM-32WAY-24VDC:
32 relays with fuse holders
All Modules:
NOTE fuses not supplied with the unit Either Finder 46.61-024-DC mechanical relays or Autonics SRS1 solid state relays
46.61-024-DC relays : 250VAC 10A CO (fuse/fuse holder limited)
SRS1-A1205 relays : 24-240VAC 5A NO
SRS1-A1D102 relays : 5-100VDC 2A NO
Supply Input (to drive PLC interface)
RM-8WAY-24VDC:
24V dc to supply external devices 20mA/relay, 160mA with 8 relays on
RM-16WAY-24VDC:
24V dc to supply external devices 20mA/relay, 320mA with all 16 relays on
RM-20WAY-24VDC:
24V dc to supply external devices 20mA/relay, 400mA with all 20 relays on
RM-32WAY-24VDC:
24V dc to supply external devices 20mA/relay, 640mA with all 32 relays on
Isolation
2kV isolation between the supply and RS485 bus
Temperature
Operating : -10°C to +20°C to +50°C
Storage : -20°C to +70°C
EMC Compliance
AS/NZS 61000.6.3:2012
Housing
DIN rail mounted polyamide, flame retardant UL 94 V0.
Terminals
Spring steel clamp, tin plated copper alloy terminal
up to 1.5mm2 stranded conductor
wire stripping 9mm
Relay Control
RM-4WAY-24VDC:
4 * 24V DC via terminals or ribbon cable connector
RM-8WAY-24VDC:
8 * +24V via terminals or 14 way ribbon cable connector
RM-16WAY-24VDC:
16 * +24V via terminals or 20 way ribbon cable connector
RM-20WAY-24VDC:
20 * +24V via terminals or 26 way ribbon cable connector
RM-32WAY-24VDC:
32 * +24V via a 40 way ribbon cable connector
RM-8WAY-24VAC:
8x 24V AC or DC via terminals approx. 30mA per relay at 24Vac, 27mA per relay at 24Vdc operating range 18V to 28V, AC or DC
Carrel Electrade RM Series Relay Modules
Description
The relay module provides 4, 8, 16, 20, or 32 relays, either mechanical Finder 46.61-024-DC relays or Autonics SRS1 solid state relays. These relay modules can be populated with a mixture of mechanical relays or solid state relays to suit the loads being switched.
Relay control can be made via terminals or through a ribbon cable connected to a PLC.
There are terminals for an external 24V DC supply which powers the PLC interface when driving the relays from a PLC via the ribbon cable.
RM-8WAY-24VAC: Relay control is via terminals using an external 24V AC or DC supply.
Note. 10A fuse/fuse holder limited
RM-8WAY-24VAC terminals only
Isolated RS485 port Selectable 9600 (default) or 19200 Baud 8 bit no parity 1 stop bit
Modbus RTU slave
node addressing selectable 1 (default) to 247
01 read discrete outputs
03 read holding registers
05 write discrete output
06 write single register
15 write multiple outputs
16 write multiple registers
4 individual relays with fuse holders
RM-8WAY-24VDC:
8 relays with fuse holders
RM-16WAY-24VDC:
16 relays with fuse holders
RM-20WAY-24VDC:
20 relays with fuse holders
RM-32WAY-24VDC:
32 relays with fuse holders
All Modules:
NOTE fuses not supplied with the unit Either Finder 46.61-024-DC mechanical relays or Autonics SRS1 solid state relays
46.61-024-DC relays : 250VAC 10A CO (fuse/fuse holder limited)
SRS1-A1205 relays : 24-240VAC 5A NO
SRS1-A1D102 relays : 5-100VDC 2A NO
24V dc to supply external devices 20mA/relay, 160mA with 8 relays on
RM-16WAY-24VDC:
24V dc to supply external devices 20mA/relay, 320mA with all 16 relays on
RM-20WAY-24VDC:
24V dc to supply external devices 20mA/relay, 400mA with all 20 relays on
RM-32WAY-24VDC:
24V dc to supply external devices 20mA/relay, 640mA with all 32 relays on
Storage : -20°C to +70°C
up to 1.5mm2 stranded conductor
wire stripping 9mm
4 * 24V DC via terminals or ribbon cable connector
RM-8WAY-24VDC:
8 * +24V via terminals or 14 way ribbon cable connector
RM-16WAY-24VDC:
16 * +24V via terminals or 20 way ribbon cable connector
RM-20WAY-24VDC:
20 * +24V via terminals or 26 way ribbon cable connector
RM-32WAY-24VDC:
32 * +24V via a 40 way ribbon cable connector
RM-8WAY-24VAC:
8x 24V AC or DC via terminals approx. 30mA per relay at 24Vac, 27mA per relay at 24Vdc operating range 18V to 28V, AC or DC
