The relay module provides 16 relays directly driven by a plug in IO-Link module. The IO-Link module plugs into a DB-25 connector on one end of the relay module and has 24 PNP outputs and a common.
The 16 relays can be either mechanical Finder 46.61-024-DC relays or Autonics SRS1 series solid state relays. The relay module can be populated with a mixture of mechanical relays or solid state relays to suit the loads being switched.
IO-LINK driven relay module
16 relays
Powered & controlled via IO-LINK
DIN rail mounting
Plug in relays
Finder 46.61 250VAC 10A CO mechanical relays
Note. 10A fuse/fuse holder limited
or Autonics SRS1 series solid state relays
Fused output
PRODUCT CODE
RM-16WAY-IOLINK
Outputs
16 relays with fuse holders
* NOTE fuses not supplied with the unit
Either Finder 46.61-024-DC mechanical relays or Autonics SRS1 solid state relays
46.61-024-DC relays : 250VAC 10A CO (fuse/fuse holder limited)
SRS1-A1205 relays : 24-240VAC 5A NO
SRS1-A1D102 relays : 5-100VDC 2A NO
Relay Control
Plug in IO-Link module, IOL-HUB-D25-24DO
Temperature
Operating : -10°C to +20°C to +50°C
Storage : -20°C to +70°C
EMC Compliance
AS/NZS 61000.6.3:2012
Housing
DIN rail mounted polyamide, flame retardant UL 94 V0.
Total weight with 46.61 relays fitted 770gms
Terminals
Spring steel clamp, tin plated copper alloy terminal
: up to 1.5mm2 stranded conductor
: wire stripping 9mm
Carrel Electrade RM Series IO-LINK Relay Module
Description
The relay module provides 16 relays directly driven by a plug in IO-Link module. The IO-Link module plugs into a DB-25 connector on one end of the relay module and has 24 PNP outputs and a common.
The 16 relays can be either mechanical Finder 46.61-024-DC relays or Autonics SRS1 series solid state relays. The relay module can be populated with a mixture of mechanical relays or solid state relays to suit the loads being switched.
Note. 10A fuse/fuse holder limited
* NOTE fuses not supplied with the unit
Either Finder 46.61-024-DC mechanical relays or Autonics SRS1 solid state relays
46.61-024-DC relays : 250VAC 10A CO (fuse/fuse holder limited)
SRS1-A1205 relays : 24-240VAC 5A NO
SRS1-A1D102 relays : 5-100VDC 2A NO
Storage : -20°C to +70°C
Total weight with 46.61 relays fitted 770gms
: up to 1.5mm2 stranded conductor
: wire stripping 9mm
Datasheet
DownloadDatasheet for RM-16WAY-IOLINK
You may also like…

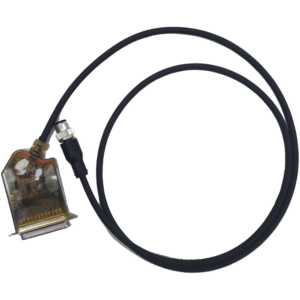

FAS-Elec IO-Link Sub D25 Adapter
