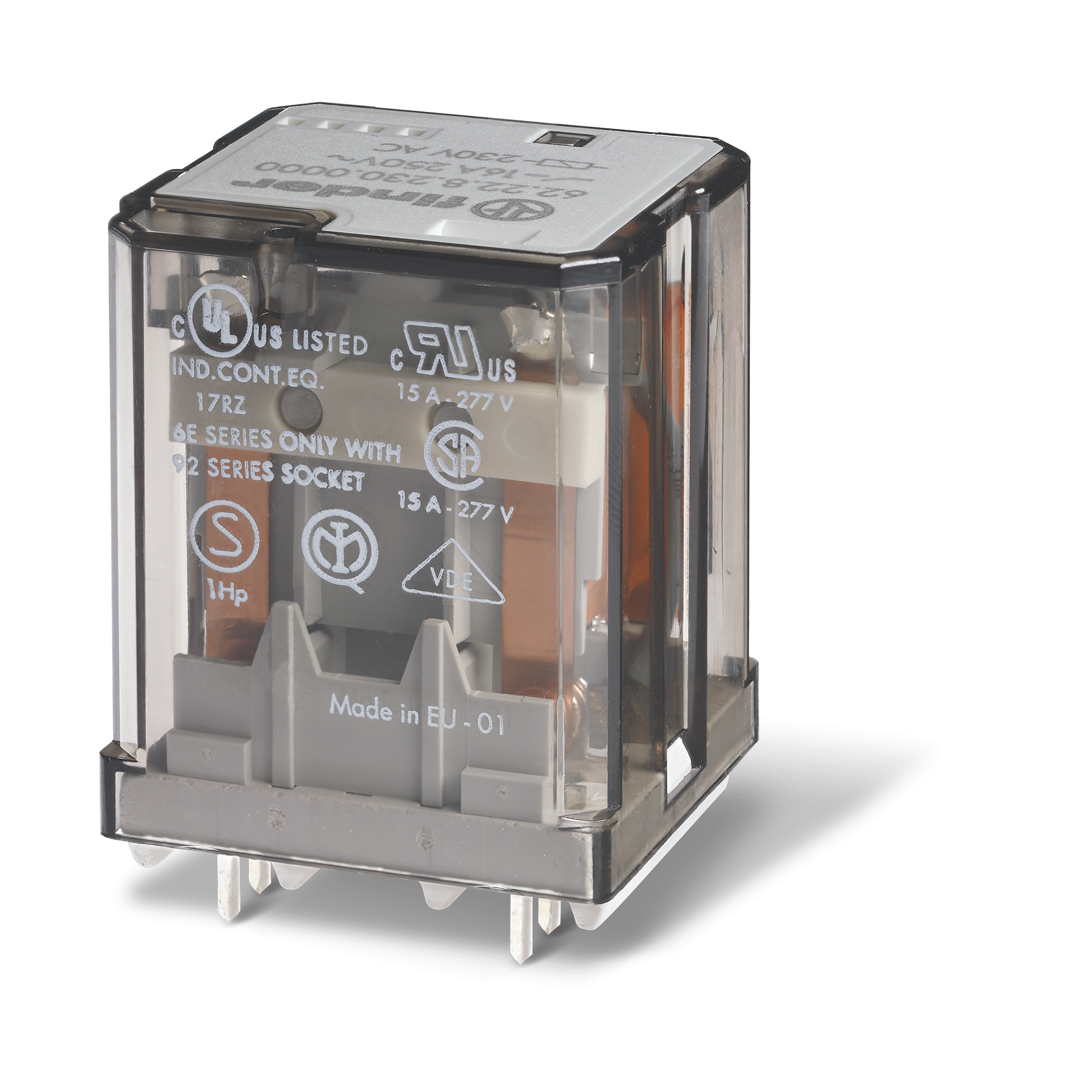

Finder Type 62.22 POWER RELAY PCB MOUNT, 2NO 16A@250VAC

Description

High Power relay, PCB mount, 2 pole, NO Contact gap ≥ 3 mm, 16 A, AgCdO, AC coil, 230 V, operating from 196 to 253 V, rated power 3 VA, resistance 5000 Ω, consumption 14 mA, holding voltage 184 V, must drop-out voltage 46 V, ambient temperature from -40 to +50 °C

Available variations:
– 16 A power relay, 2 NO CO contacts (opening ≥ 3 mm), suitable for mounting on a printed circuit. Equipped with AC or DC coil, Reinforced insulation between coil and contacts according to EN 60335-1; clearance/creepage separation of 6/8 mm. Variant with SELV separator between coil and contacts.
– 16 A power relay, 2 NO CO contacts (opening ≥ 3 mm), suitable for mounting on a printed circuit. Equipped with AC or DC coil, Reinforced insulation between coil and contacts according to EN 60335-1; clearance/creepage separation of 6/8 mm. Variant with SELV separator between coil and contacts.

Available models:

• 62.22-0300-110DC: POWER RELAY PCB MOUNT, 2NO 16A@250VAC, 110VDC COIL
• 62.22-0300-230AC: POWER RELAY PCB MOUNT, 2NO 16A@250VAC, 230VAC COIL
• 62.22-060-DC: POWER RELAY PCB MOUNT, 2CO 16A@250VAC, 60VDC COIL
• 62.22-230-AC: POWER RELAY PCB MOUNT, 2CO 16A@250VAC, 230VAC COIL
