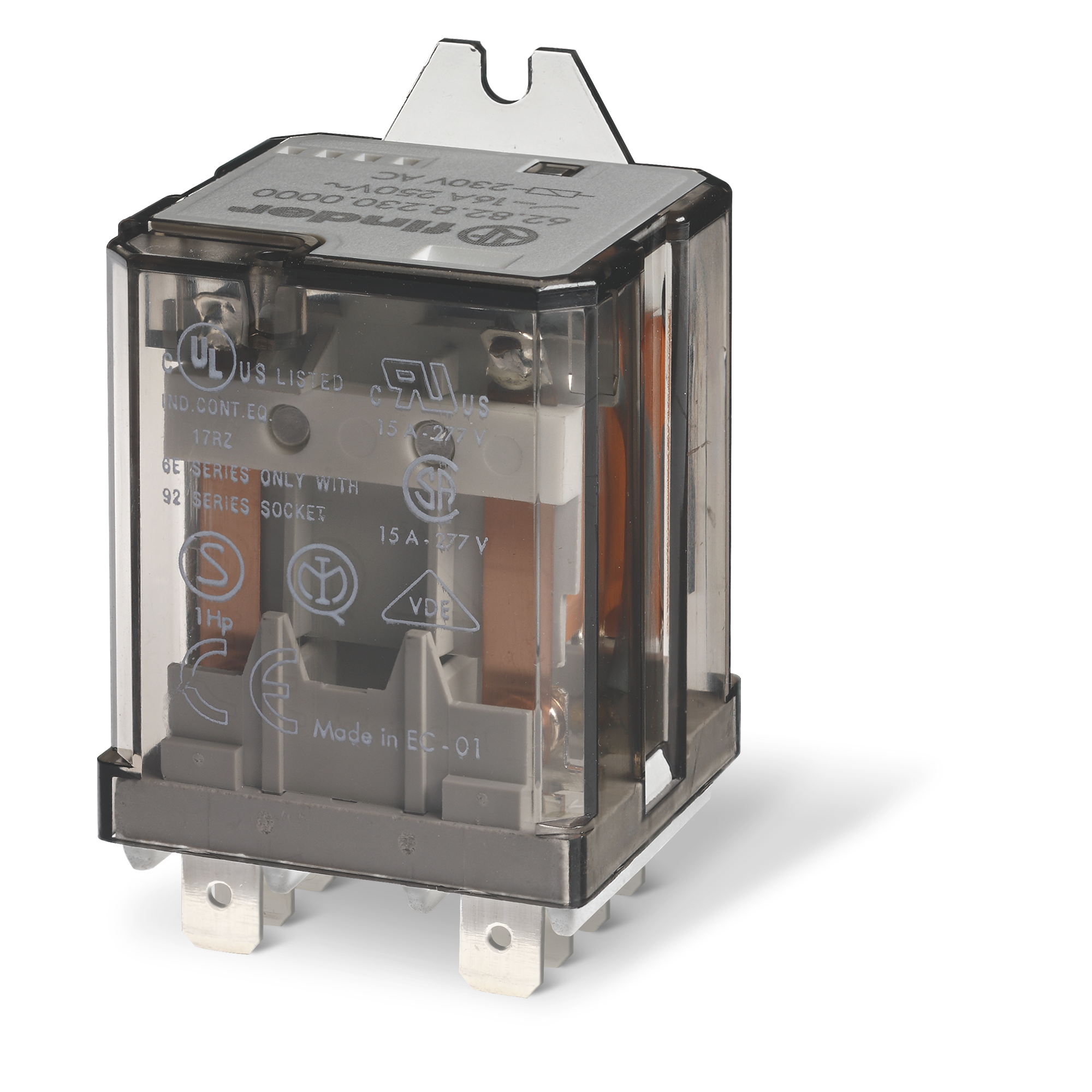

High Power relay, Faston 250 with flange mount, 2 pole, CO (nPDT), 16 A, AgCdO, DC coil, 24 V, operating from 19.2 to 26.4 V, rated power 1.3 W, resistance 445 Ω, consumption 54 mA, holding voltage 14.4 V, must drop-out voltage 2.4 V, ambient temperature from -40 to +70 °C
Available variations:
– 16 A power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors. Also available Type 62.82-0300 with 2 pole NO contacts (≥ 3 mm contact gap).
– 16 A power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors. Also available Type 62.82-0300 with 2 pole NO contacts (≥ 3 mm contact gap).
– 16 A power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors. Also available Type 62.82-0300 with 2 pole NO contacts (≥ 3 mm contact gap).
– 16 A power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors. Also available Type 62.82-0300 with 2 pole NO contacts (≥ 3 mm contact gap).
Available models:
62.82-024-AC: POWER RELAY FLANGE MOUNT, 2CO 16A@250VAC, 24VAC COIL
62.82-024-DC: POWER RELAY FLANGE MOUNT, 2CO 16A@250VAC, 24VDC COIL
62.82-0300-230AC: POWER RELAY FLANGE MOUNT, 2NO 16A@250VAC, 230VAC COIL
62.82-230-0005: POWER RELAY FLANGE MOUNT, LED & TEST BUTTON, 2CO 16A@250VAC, 230VAC COIL
62.82-230-AC: POWER RELAY FLANGE MOUNT, 2CO 16A@250VAC, 230VAC COIL
Finder Type 62.82 POWER RELAY FLANGE MOUNT, 2CO 16A@250VAC
Description
High Power relay, Faston 250 with flange mount, 2 pole, CO (nPDT), 16 A, AgCdO, DC coil, 24 V, operating from 19.2 to 26.4 V, rated power 1.3 W, resistance 445 Ω, consumption 54 mA, holding voltage 14.4 V, must drop-out voltage 2.4 V, ambient temperature from -40 to +70 °C
Available variations:
– 16 A power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors. Also available Type 62.82-0300 with 2 pole NO contacts (≥ 3 mm contact gap).
– 16 A power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors. Also available Type 62.82-0300 with 2 pole NO contacts (≥ 3 mm contact gap).
– 16 A power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors. Also available Type 62.82-0300 with 2 pole NO contacts (≥ 3 mm contact gap).
– 16 A power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors. Also available Type 62.82-0300 with 2 pole NO contacts (≥ 3 mm contact gap).
Available models:
