Description

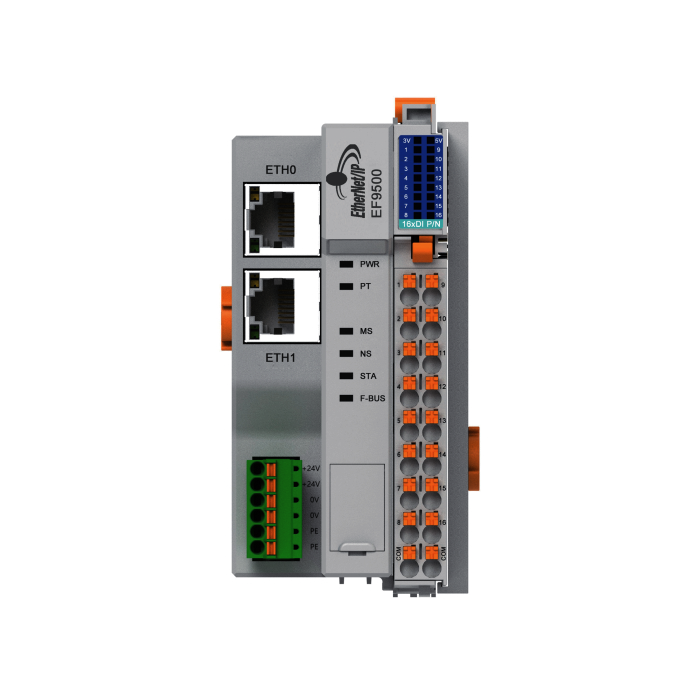

Each coupler comes integrated with 16 digital inputs
EtherCat – 100M high-speed backplane bus, supporting up to 255 modules

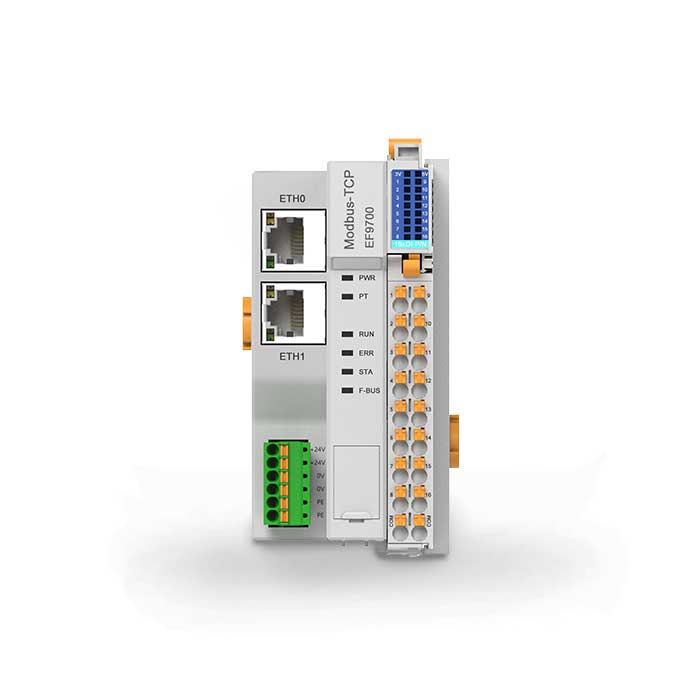

Modbus TCP – 100M high-speed backplane bus, supporting up to 32 modules

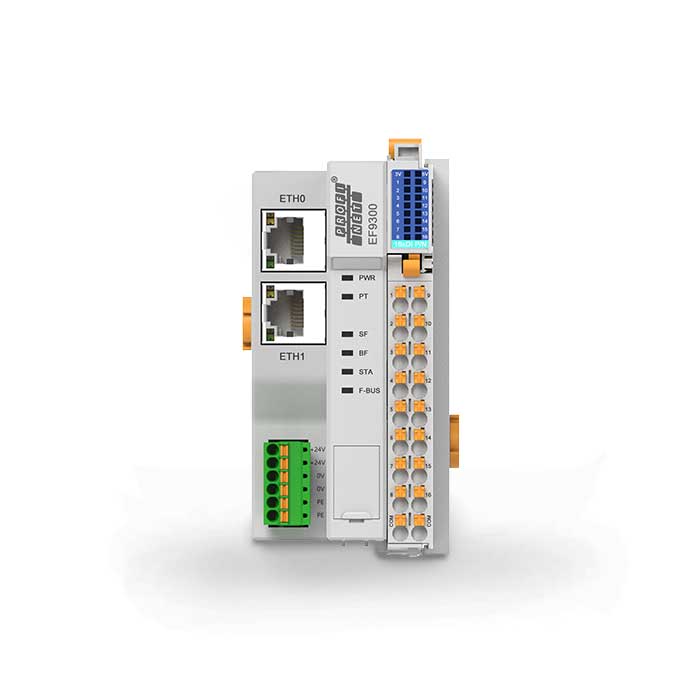

PROFINET – 100M high-speed backplane bus, supporting up to 32 modules

PRODUCT CODE

Protocol	EtherCAT, Ethernet/IP, Modbus TCP, PROFINET
Protection rating	IP20
Terminal input power supply rated voltage	24V DC (20.4V DC~28.8V DC)
Terminal input power rated current	200mA (typical value at 24V)
Enter the points	16
Power protection	Overcurrent protection, reverse polarity protection, surge absorption
Ambient operating temperature	-25°C ... ~55°C
Ambient working humidity	Relative humidity below 95% RH produces no condensation
Atmosphere	Ensure there are no corrosive gases
Ambient storage temperature	-40°C ... ~85°C (Relative humidity less than 90%RH, no condensation)
Elevation	Below 2000 meters (80kPa)
Pollution level	Level 2
Anti-disturbance measures	Power cord 2KV (IEC61000-4-4)
Overvoltage category	II
EMC anti-interference rating	Zone B, IEC61131-2
Vibration resistance	IEC 60068-2-6
Impact resistance	IEC 60068-2-27
Scalability	EtherCAT Supports 255 modules Ethernet/IP Supports 32 Modules Modbus TCP Supports 32 Modules PROFINET Supports 32 Modules
Modbus TCP Minimum scanning cycle	125us
