FAS-Elec Remote IO Expansion Modules

Get A Quote
SKU: N/A Categories: , Brand:

Description

The FFC series blade modules are suitable for common bus networks and can quickly and reliably
collect signals in your system. At the same time, it has a slim body of only 12 mm, can achieve
microsecond-level response speeds, has a flexible IO system, and a more stable structural design.



  • Leading performance, microsecond response time
  • Compact size, tool-free installation
  • More stable and reliable design
  • Can be configured in multiple ways
PRODUCT CODE
TypeDigital input module, Digital output module, Analog input module, Analog output module, RTD input module, Thermocouple input module, lO-Link master station module, Repeater power module
DescriptionEL1016 - 16-point transistor input module
EL2019 - 16-point transistor output module
EL3174 - 4 analog input module

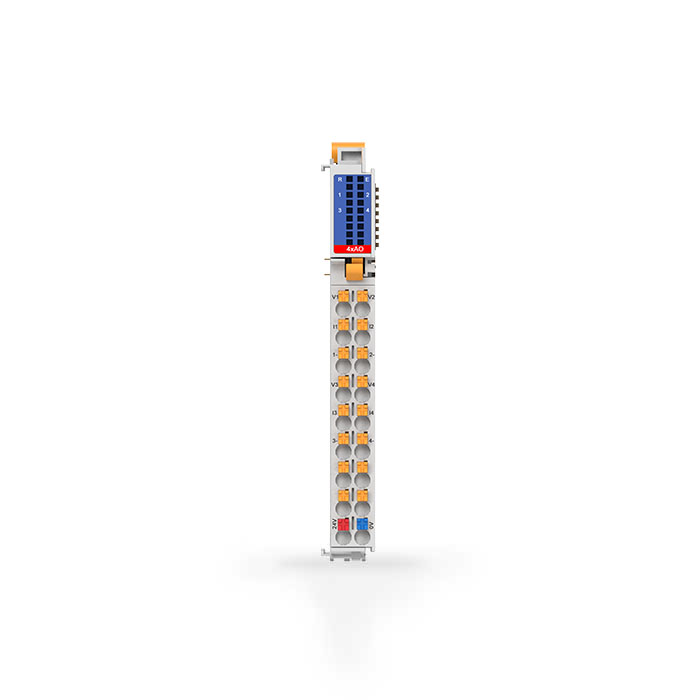

EL4074 - 4 analog output module
EL3204 - 4-channel RTD input module
El3314 - 4-channel thermocouple input module
El6224 - lO-Link main station
ELP000 - Relay power module
Protection ratingIP20
Ambient operating temperature-25°C ... -55°C
Inputs and outputsEL1016 - 16 DI
EL2019 - 16 DO
EL3174 - 4 AI
EL4074 - 4 AO
EL3204 - 4 RTD
El3314 - 4 TC
El6224 - 4 IO-Link
Input/Output typeEL1016 - NPN/PNP
EL2019 - PNP
EL3174 - Voltage /Current
ELP000 - 5V 4A
Rated input voltageEL1016 - 24VDC
EL2019 - 24VDC
El6224 - 24VDC
ELP000 - 24VDC
Input/Output rangeEL1016 - PNP: 15-30V(ON), 0-9V(OFF) / NPN: 0-9V(ON), 15-30V(OFF)
EL3174 - Voltage: ±10 V / Current: ±20 mA
EL4074 - Voltage: ±10 V / Current: ±20 mA
Hardware response time ON/OFFEL1016 - 100us/100us
EL2019 - 100us/100us
Maximum load currentEL2019 - 0.5 A
El6224 - 1A
Sensor typeEL3204 - RTD, PT100
El3314 - Thermocouple TC, Type J, K, L, B, E, N, R, H, T, U (default type K)
ResolutionEL3174 - 16 Bit
EL4074 - 16 Bit
EL3204 - 15 Bit
El3314 - 24 Bit
Accuracy (25°C)EL4074 - ±0.1% (full scale)
EL3204 - Driver 1°C@T700°C
El3314 - ≥ 1.5°C@-270°C≤T≤-200°C, < 1.5°C@-200°C≤T≤-100°C, <±1°C@-100°C≤T≤500°C, < 0.2% display value @ 500°C≤T≤1300℃, ≥Scholar 2.6°C@1300°C≤T≤1370°C
Detection rangeEL3204 - -200 ~ +850℃ (PT); -60 ~ +250°C(Ni)
Input filter frequencyEL3204 - 1kHz
El3314 - 1kHz
Power terminal current capacity6A

EtherCAT Configuration Files - ECT

Download

Configuration files for EF9100 EtherCAT Bus Coupler
