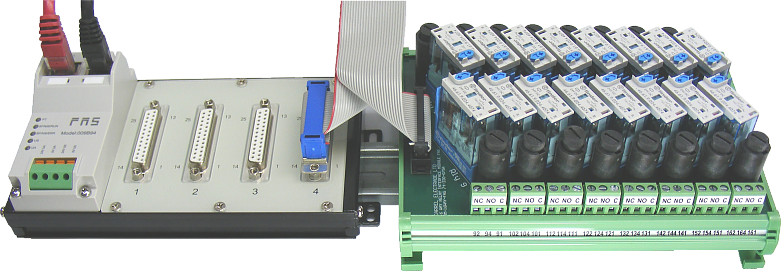

This 16-channel relay module is designed to plug directly into one of the 4×16 I/O ports on a FAS 64 Digital Mixed I/O industrial network module.
Connection is via a simple straight through cable comprising of a DB-25 connector on the I/O end and a 26 way header on the relay end (core 26 not used).
The cable can be flat ribbon with IDC connectors where only low voltages are present OR a pre moulded DB-25 round cable where mixed voltages create the requirement for double insulation.
This system considerably reduces wiring overheads.
The 16 relays can be either mechanical Finder 46.61-024-DC relays or Autonics SRS1 series solid state relays. The relay module can be populated with a mixture of mechanical relays or solid state relays to suit the loads being switched.
FAS – IO-LINK module driven relay module
16 relays
Powered & controlled via FAS IO-LINK module
DIN rail mounting
Plug in relays
Finder 46.61 250VAC 10A CO mechanical relays
Note. 10A fuse/fuse holder limited
or Autonics SRS1 series solid state relays
Fused output
PRODUCT CODE
RM-16WAY-FAS
Outputs
16 relays with fuse holders * NOTE fuses not supplied with the unit Either Finder 46.61-024-DC mechanical relays or Autonics SRS1 solid state relays 46.61-024-DC relays : 250VAC 10A CO (fuse/fuse holder limited), approximately 22mA each at 24V SRS1-A1205 relays : 24-240VAC 5A NO, max. inrush current 250A SRS1-A1D102 relays : 5-100VDC 2A NO
Relay Control
Plug in FAS multi-protocol industrial network module via 26 way header
Temperature
Operating : -10°C to +20°C to +50°C Storage : -20°C to +70°C NOTE the temperature rise from normal operation needs to be considered. 16 mechanical relays operating will create about 12W of dissipation. Each 24-240VAC SSR operating at 5A will produce about 5W of dissipation.
EMC Compliance
AS/NZS 61000.6.3:2012
Housing
DIN rail mounted polyamide, flame retardant UL 94 V0. Total weight with 46.61 relays fitted 770gms
Relay Terminals
Spring steel clamp, tin plated copper alloy terminal : up to 1.5mm2 stranded conductor : wire stripping 9mm
Carrel Electrade RM Series FAS IO-LINK Relay Module
Description
This 16-channel relay module is designed to plug directly into one of the 4×16 I/O ports on a FAS 64 Digital Mixed I/O industrial network module.
Connection is via a simple straight through cable comprising of a DB-25 connector on the I/O end and a 26 way header on the relay end (core 26 not used).
The cable can be flat ribbon with IDC connectors where only low voltages are present OR a pre moulded DB-25 round cable where mixed voltages create the requirement for double insulation.
Applicable FAS IO modules:
EC-HUB-IP20-64DIO (009E94) EtherCAT
MP-HUB-IP20-64DIO (009B94) Ethernet/IP, ProfiNET, CCLink, Modbus/TCP
This system considerably reduces wiring overheads.
The 16 relays can be either mechanical Finder 46.61-024-DC relays or Autonics SRS1 series solid state relays. The relay module can be populated with a mixture of mechanical relays or solid state relays to suit the loads being switched.
Note. 10A fuse/fuse holder limited
Datasheet
DownloadDatasheet for RM-16WAY-FAS
