FAS-Elec IO-Link Sub D25 Adapter
−
FAS-Elec IO-Link Sub D25 Adapter quantity
+
Get A Quote
Share
SKU:
IOL-HUB-D25-24DO
Category:
Relay Accessories
Tag:
DIN RAIL Mounted Relay Modules
Brand:
FAS-Elec
Description
Specifications
Downloads
Specifications
Description
For control of the Carrel Electrade
RM-16WAY-FAS IO-LINK Relay Module
PRODUCT CODE
IOL-HUB-D25-24DO
Output signal
IO-Link
Interface
COM 25 (0V)
Outputs
16
IO-Link data length
2 output bytes
Minimum cycle time
3ms
Operating temperature
-25...+70 °C
Storage temperature
-40...+85 °C
Housing material
Modified plastic
Dimensions
53.1 × 68.8 × 12.5mm
Cable length
(with M12) 60 m
Protection rating
IP 40
Error indicator
Red LED
Communication indicator
Green LED
Rated operating voltage
18...30.2 V DC
Total current Us
1.6 A
IO-Link port wiring configuration
Pin 1: Supply voltage +24 V
Pin 2: Operating voltage +24 V
Pin 3: Ground, reference potential
Pin 4: C/Q, IO-Link
Pin 5: Functional earth
IO-Link
-
Mode
COM 2
Transmission rate
38.4 kbaud
You may also like…

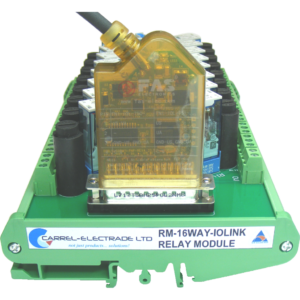

Carrel Electrade RM Series IO-LINK Relay Module
